Description

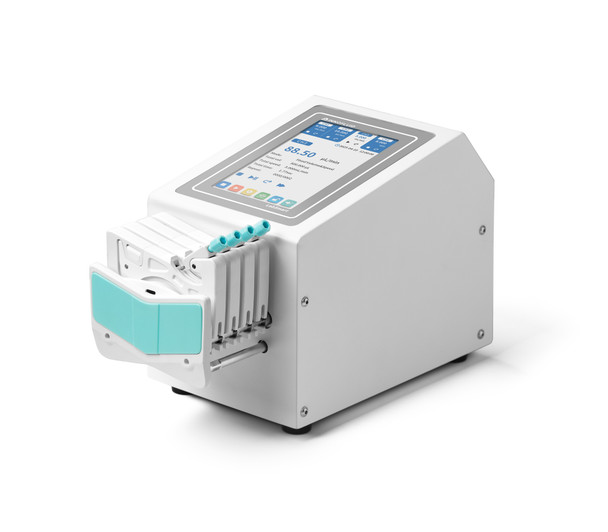

This Multi-Channel Peristaltic Pump has Independant Channel Control allowing users to run four different flow rates via four different channels.
- Touch display screen
- Intelligent controller featuring both transfer and dispense functions
- Robust body construction
- Easy to use and operate
- Accurate flow rates via the 4 channel AMC pump head
5" HD Color Touchscreen:
Proprietary anti-shake algorithm ensures ultra-responsive control and crystal clear visuals.
10-Roller Pump Head:
Significantly reduces fluid fluctuation for smooth flow; custom high-strength polymer extend service life.
Supports four operating modes:
Flow Rate Mode, Timed & Volume, Time & Speed, and Volume & Speed.
Multi-channel and multi-mode support:
Multi-group program storage for complex scenarios.
High-performance main control chip:
Mode-specific algorithms for unmatched stability and precision.
0.001 rpm Resolution:
Custom microstep motor with optimized drive logic for delicate and precise micro-volume control.
Wide-Voltage Design:
Robust anti-interference capability ensures stable, continuous operation in harsh environments.
Spring-Loaded Mechanism:
Infinitely adjustable tubing gaps to maximize tubing longevity and dosing accuracy.
External Control Capabilities
Passive switch signal: such as a foot pedal switch, Active switch signal: compatible with 5-24 V DC input
Model: LABSMART/AMC4
Flow Rate (ml/min): 0.50-48.37ml/min Max Per Channel
Speed Range (rpm): 0.1 - 150 (reversible)
Pump Head: AMC4
Display: Touch Screen
External Control: Yes
