Description

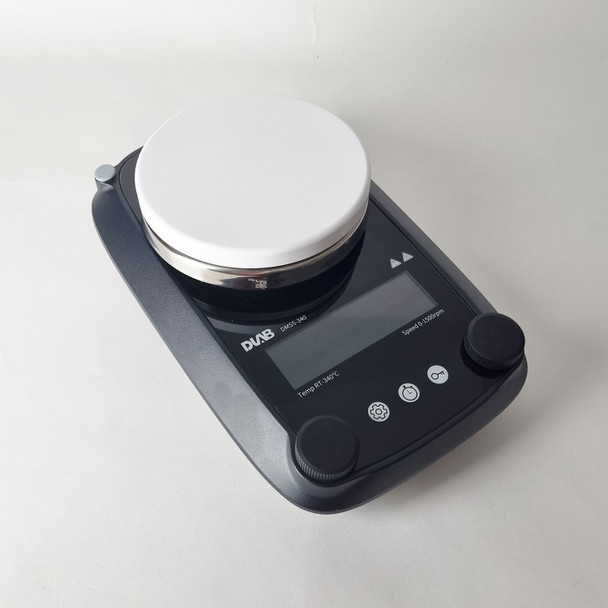

Digital Laboratory Hotplate with Magnetic Stirring
This professional magnetic hotplate stirrer features a durable ceramic-coated aluminium plate for excellent corrosion resistance and easy cleaning, combined with a robust all-metal housing for superior heat dissipation and safety.
A powerful magnetic drive provides reliable stirring, including for high-viscosity samples, while three selectable heating modes deliver precise temperature control for a wide range of laboratory applications. The clear LCD display shows speed, temperature and timer settings, with programmable timing up to 99 hours and 59 minutes.
Advanced safety features include over-temperature protection, residual heat warning, dual safety circuits, safety lock, automatic fault detection, adjustable safety temperature limits, and IP41 protection.
With a maintenance-free brushless DC motor, PC connectivity, and compatibility with a wide range of accessories, it is an ideal solution for research, educational and industrial laboratories.
Digital Control Sensor Set
An external sensor set is also be supplied with this model. The sensor set allows the controller to measure the liquid temperature inside a beaker or flask, rather than just the hotplate surface temperature. This sensor ultimately gives greater control of sample temperature.
Ceramic coated top plate
- Chemical resistant and easy to clean
High-specification temperature controller
- Digital feedback provides accurate temperature and RPM control
- Jog dial switch ensures easy-to-set RPM values
- Backlight LCD with bright visibility and easy to monitor parameter
- Timer function to 99hr 59min
- Safety Over Temp. Protection
Product Components
- Main hotplate
- External sensor
- Sensor support Kit (Support Rod, holding Rod, and Rod Clamp)
Specifications
Temp. Range: Max 340°C
Temp. Display: LCD Display
Temp. Accuracy: ±2°C
Temp. Controller: Advanced Digital PID Controller
Stirring Speed (RPM): 50 ~ 1500
Stirring Capacity (Max litres): 10
Timer: 99hr 59min
Heating Power (W): 650
Plate: Ceramic Coated Aluminium
Body: Powder Coated Aluminium
Plate Dimensions (mm): 135mm Dia
Dimensions (WxDxH mm): 270x175x98
Weight (kg): 2.2
Product Specifications
Pack Size: |
1 |
Included: |
External sensor set for accurate control |
